型號
Model | 相數
Phase | 步距角
Step Angle | 靜轉矩
Torque
(Nm) | 電流
Current
(A) | 相電阻
Resistance
(Ω) | 相電感
Inductance
(mH) | 機身長
Length
(mm) | 孔距
Hole Dist.
(mm) | 出軸長
Shaft L
(mm) | 軸徑
Shaft D
(mm) | 軸處理

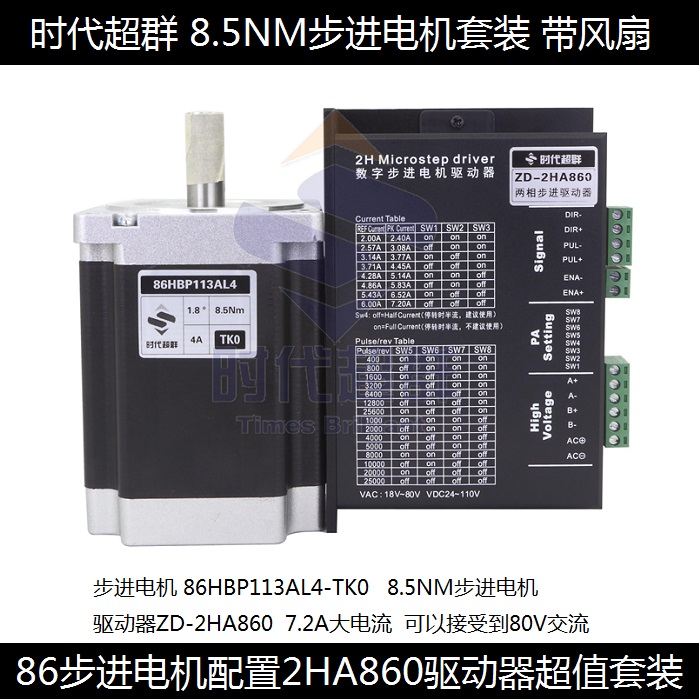

Shaft | | 86HBP65AL4-TF0 | 2 | 1.8° | 2.8 | 3.0 | 0.58 | 3.35 | 65 | 70 | 32 | 12 | 扁 | | 86HBS80AL4-DK0 | 2 | 1.8° | 4.0 | 4.0 | 1.3 | 8.1 | 80 | 70 | 36/21 | 14/14 | 鍵/扁 | | 86HBS80AL4-TK0 | 2 | 1.8° | 4.0 | 4.0 | 1. | 8.1 | 80 | 70 | 36 | 14 | 鍵*5 | | 86HBP98AL4-TK0 | 2 | 1.8° | 7.5 | 4.0 | 0.5 | 7.4 | 98 | 70 | 36 | 14 | 鍵*5 | | 86HBP98AL4-TK0B | 2 | 1.8° | 7.5 | 4.0 | 0.5 | 7.4 | 98 | 70 | 36 | 14 | 鍵*5 | | 86HBP113AL4-TK0 | 2 | 1.8° | 8.5 | 4.0 | 0.6 | 11.0 | 113 | 70 | 36 | 14 | 鍵*5 | | 86HBP113AL4-DK0 | 2 | 1.8° | 8.5 | 4.0 | 0.6 | 11.0 | 113 | 70 | 36/21 | 14/14 | 鍵/扁 | | 86HBP113AL4-TK0B | 2 | 1.8° | 8.5 | 4.0 | 0.6 | 11.0 | 113 | 70 | 36 | 14 | 鍵*5 | | 86HBP150AL4-TK0 | 2 | 1.8° | 12.0 | 4.4 | 0.84 | 9.7 | 150 | 70 | 36 | 14 | 鍵*5 | | 86HBP150AL4-DK0 | 2 | 1.8° | 12.0 | 4.4 | 0.8 | 9.7 | 150 | 70 | 36/21 | 14/14 | 鍵/扁 | | 86HBP150AL4-TK0B | 2 | 1.8° | 12.0 | 4.4 | 0.84 | 9.7 | 150 | 70 | 36 | 14 | 鍵*5 | | 86HCY65AL3-TR0 | 3 | 1.2° | 2.0 | 3.0 | 0.2 | 1.6 | 65 | 70 | 30 | 12 | 圓 | | 86HCY98AL3-TR0 | 3 | 1.2° | 4.5 | 5.2 | 0.5 | 3.0 | 98 | 70 | 36 | 14 | 圓 | | 86HCY113AL3-TK0 | 3 | 1.2° | 6.0 | 5.2 | 0.4 | 5.9 | 113 | 70 | 36 | 14 | 鍵*4 | | 86HCY150AL3-TK0 | 3 | 1.2° | 7.0 | 5.0 | 1.0 | 5.9 | 150 | 70 | 36 | 14 | 鍵*4 |
·應用領域
· 以上為本款產品的基本介紹，如需詳細了解更多多樣化創意搭配以及購買請聯系下方聯系方式 ·廠家直銷 根據您的實際情況可否需要特殊規格特殊規格的步進電機，請和我們溝通，在技術允許的范圍內，加工訂貨。例如，出軸的直徑、長短、伸出方向、相線（編碼器線）長度等。如購買配套設置可免費給您組裝調試好！ 聯系人：李先生 電話：18010107283 QQ：2223199877 微信：shidaichaoqun 淘寶店鋪：https://shop114114198.taobao.com/index.htm?spm=2013.1.w5002-16614260111.2.ZPGxYs
|
